Overview:
Designed to efficiently separate dust, debris, and liquids from an airstream and collect the material in a general-purpose recovery bin reducing the materials which reach the vacuum. Capturing both bulky and fine very dust, the separator dramatically reduces the need to replace filters, filter bags and extend the vacuum's useful life. The Quick Click separator combines cyclonic action with a unique concave baffle design that results in highly efficient separation of both large and very fine particulates. The result is a clean air stream reaching the vacuum which ensures the vacuums performance is not compromised by dirty filters that reduce airflow and sealed suction. This unit comes with a 10 gallon stainless steel collection bin on a trolley for easy mobility of the unit.
Features and Benefits:
-
Designed to efficiently separate dust, debris, and liquids from an airstream and collect the material in a general purpose recovery bin reducing the materials which reach the vacuum.
- 10 Gallon stainless steel recovery bin on wheels.
-
8” upper housing with curved surfaces ensures the debris entering the separator travels freely past the center baffle and smooths the airstream path which minimizes its impact on the performance of the vacuum and raises efficiency.
-
Designed around industry standard vacuums and hoses to make connecting the separator easy and efficient with minimal need for adapters or duct tape.
- Commercial grade rubber mounting gasket ensures against air leaks that can rob performance.
-
Ideal for use in a broad range of applications including woodworking, auto body detail shops, commercial painters, sheet rock installation and repair, remodelers, construction clean-up contractors, stone counter top production shops, hard wood floor refinishers, liquid capture, gardening, and slurry collection.
-
The separator has a 4” diameter discharge point to the debris recovery bin which helps keep the separator clear of performance robbing clogs.
-
When mounted to the lid of the recovery bin you will notice there is a cylinder extending from the 6.5” wide mounting flange that presses through the recovery bin lid to keep the Quick Click separator stable during use and helps ensure a sealed condition.
- Includes an industry exclusive, removable baffle built into the separator to further help prevent small particles from reaching the vacuum stream.
-

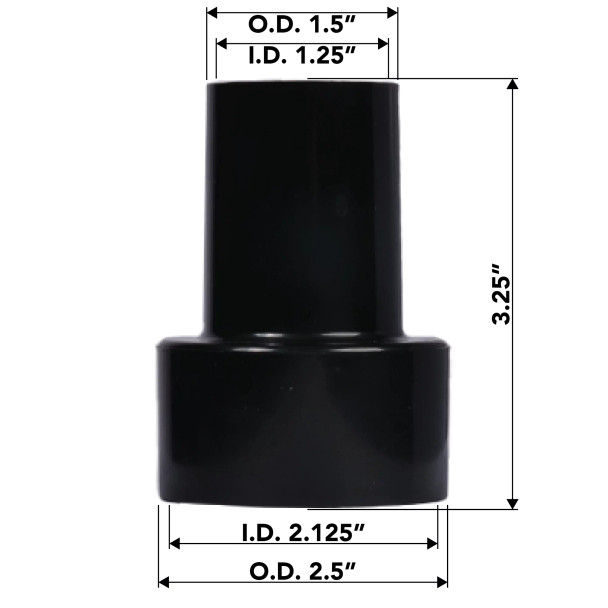

Includes a 1.25" inner diameter hose with a 10- or 16-foot length.
-
The highly flexible commercial grade vacuum hose has a smooth interior to resist clogging with large profile debris while supplying superior airflow.
- Expanded Quick Click adapter set includes 3/4", 1", 1-1/4", 1-1/2" Power Tool shroud fittings.
-
Comes with quick click system for connecting to the exhaust port on all major brands of hand held and stationary power tools.
-
The hose collar has a clip ring to ensure a secure connection from the hose to the tool.
-
The bayonet fittings with ¾”, 1”, 1-1/4”, 1-½” sizes are made of soft TPE and designed to accept and hold exhaust ports.
-
The fittings are designed to fit the hose internally or externally as demanded by the power tools design.
-
Changing from one end fitting to the other takes a few seconds.
-
Offers a smooth 360-degree swivel connection to prevent the hose from kinking or restricting movement of the power tool.
- The soft TPE of the fitting allows the fitting to form to the shape of the exhaust port off of the selected power tool.
- Product is made in the USA.
Compatibility:
- Both the intake and outlet to the vacuum are designed to be compatible with industry standard wet-dry domestic vacuums and their hoses like Rigid, Shop Vac, Vacmaster, Dewalt, and many other brands. The hoses will fit male into the 2.375” inlet. The outside of the inlet and exit to the vacuum are designed to accept popular 2.5” dust collection wire support hoses commonly used in home and commercial workshops.
- Quick Click adapters are designed to fit most major brands of power tools and work shrouds including Skill Bosch, Ryobi, Makita, Dewalt, Festool. Fein, Cobalt, Porter Cable, Hitachi and Milwaukee Electric.
Hose ends, power tool adapters and separator made in USA.
