One Hose, Many Tools: Dialing In Dust Collection (Without Breaking the Bank)

One Hose, Many Tools: Dialing In Dust Collection (Without Breaking the Bank)

If you’ve ever tried to connect a bunch of different tools to one dust extractor… you already know the pain.

One port is too big.
Another is a weird custom size.
The next one almost fits… but not quite.
And at some point you’re standing there with a tape measure thinking, “Why is nothing standard?” ?

We had a woodworker reach out after looking at the Harbor Freight 12 Gallon OSHA-Compliant HEPA Dust Extractor (Model HE028). Solid option. The only issue? The included hose was too long and too stiff, and the “easy button” alternative (a Festool hose) was $165, which felt like a lot just to get better flexibility.

So the question was simple:

“Which Quick Click Kit should I get to hook up a DeWalt miter saw, bench saw, sanders, and other equipment?”

Chad had already pointed them toward our 96524 kit, and after working through the tool list and port measurements, we agreed: 96524 is a great base solution — but there were three tools where adding a small extra fitting would make everything connect cleaner and easier.

Let’s walk through it.

The base solution: Kit #96524

When you’re trying to connect multiple tools to one extractor, the goal is simple:

  • One flexible hose

  • Adapters that fit a lot of common tools

  • Clean airflow (so you don’t restrict suction)

  • Fast changeovers so you’re not constantly wrestling hose ends

That’s why 96524 is a strong “start here” kit — it gives you the hose, separator, and adapters to cover most common woodworking needs.

But… not every tool plays nice.

The three “extra part” situations (and how we solved them)

1) DeWalt miter saw with a 2.25" outer diameter port

The DeWalt miter saw had a 2.25" OD connection point.

The fix here is simple:

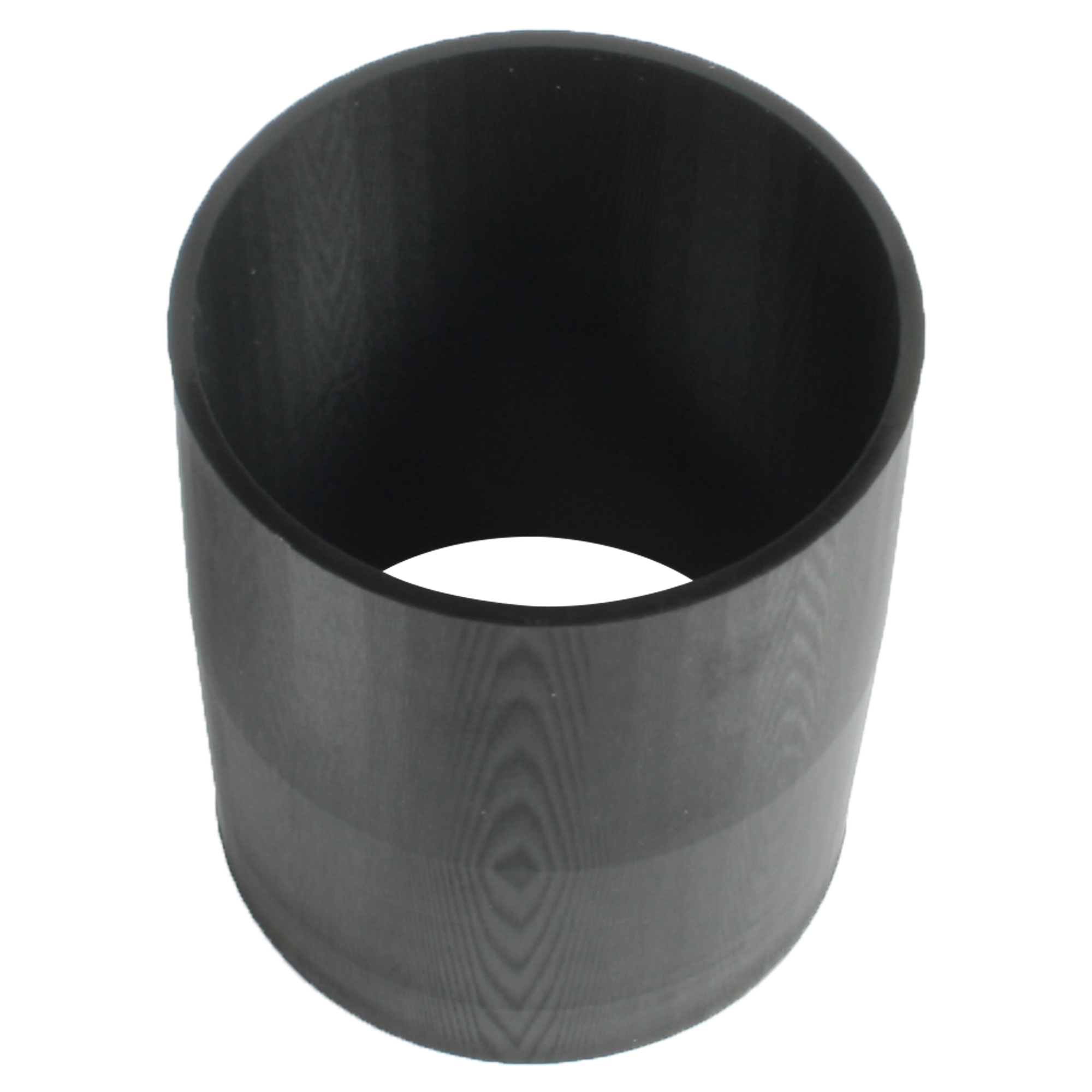

✅ Add 61666.

Why it works:

  • 61666 slips over that 2.25" OD port

  • and it also accepts the 2.25" male adapter included in the 96524 kit.

In plain English: it becomes a clean little “splice” that bridges the saw to the kit adapter.

Bonus tip: Once you install it, you can basically leave it on the saw permanently — so later you’re just popping the hose on and off without redoing anything.

2) Craftsman “modified exhaust” (2.72" OD / 2.37" ID)

This one was the wildcard — and honestly, those measurements are outside what’s typical.

First thought:

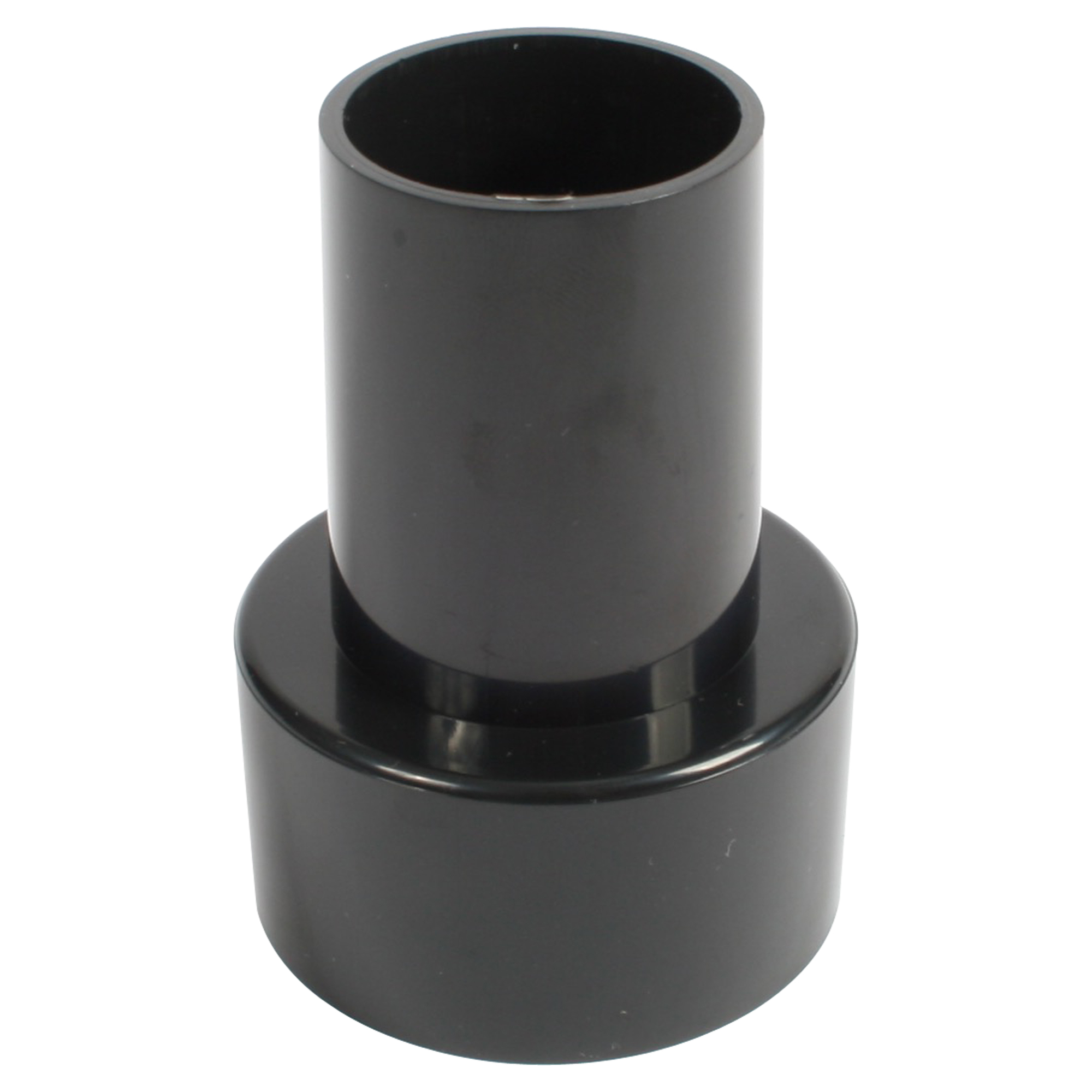

✅ Use 63228 as the base fitting.

Here’s the approach:

  • 63228 has an outside diameter around 2.30" near the base of its taper

  • the tool has a 2.37" inside diameter

So you can:

  1. Wrap 63228 with a little electrical tape

  2. Press-fit it into the 2.37" ID

  3. Make it a “permanent-ish” tool-side connection

Then the other end of 63228 gives you a 1.50" male, which works great with the 1.50" TPE adapter from your kit/adapter set.

One important question:
This was called out as a modified exhaust — which might mean it’s being used as a blower.

So it’s worth asking:

  • If you remove the modification and go back to using it as a vacuum, does the port turn into a more standard 2.25" female?

If yes — the whole setup becomes easier, and the kit solution works more cleanly.

Also: if you end up using an extra 63228, you can leave it in place on the tool like a “quick connect” for later.

3) WEN port (2.46" OD / 2.19" ID) — tough one, but we avoided restricting airflow

This was the trickiest because we didn’t want to reduce the inner diameter too much and create a clog risk.

So the goal was: keep a 2" inner diameter end-to-end as much as possible.

Here’s the chain that keeps airflow open:

✅ 60038 → ✅ 69229 (stop coupling) → ✅ 61666

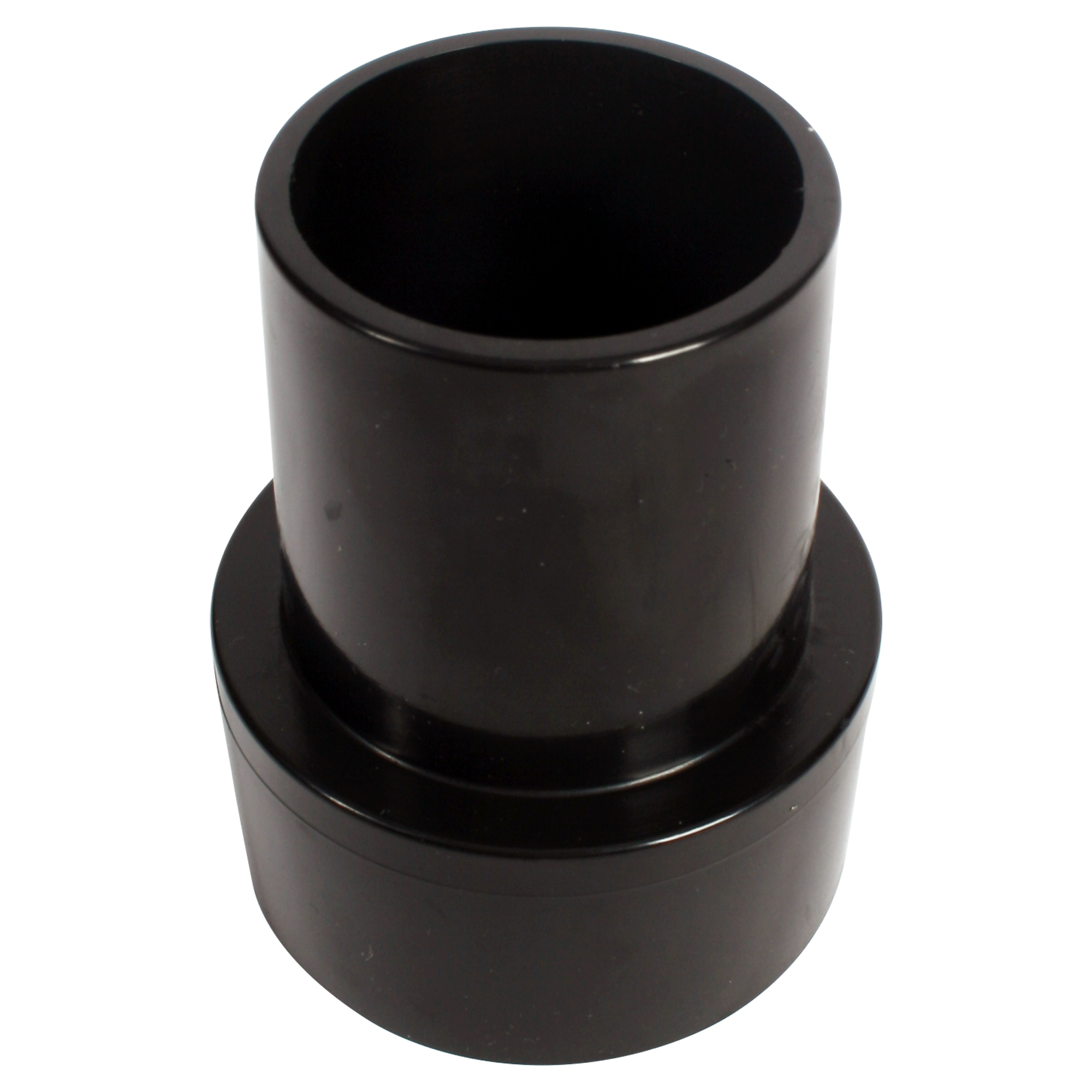

  • 60038 should fit over the 2.46" OD (tight, but should fit)

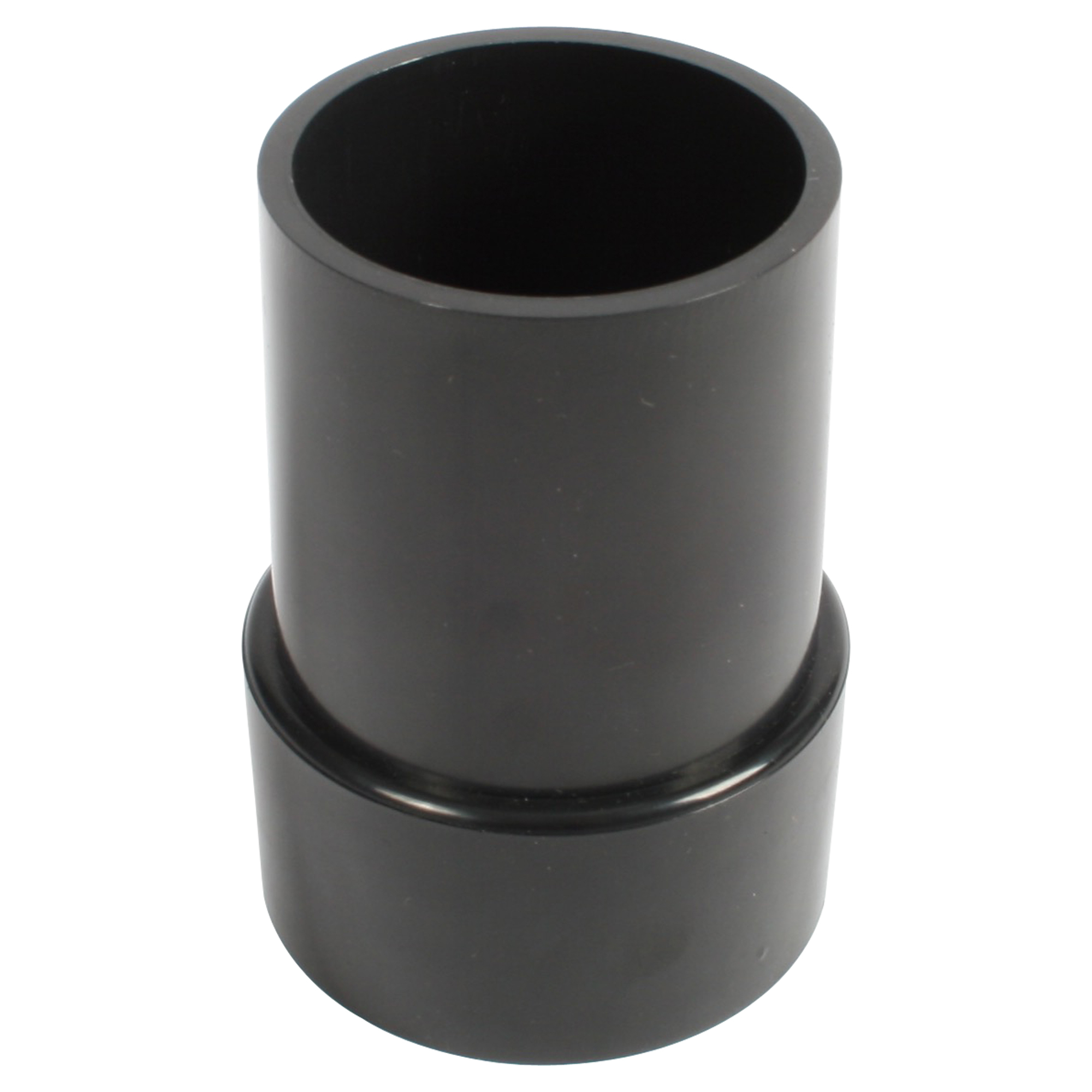

  • 69229 acts as the stop coupling

  • 61666 finishes the “bridge” so it can accept the male adapter from the 96524 kit

And here’s the best part:
If you go this route, let us know — we can include that specific set-up so you’re not stuck hunting down oddball fittings.

The “pro move” once you get everything working

After you get the kit in hand, you’ll quickly notice something:

Some adapters just “feel perfect” on certain tools.

And once you know which adapter fits which tool best, the easiest workflow is:

✅ Leave the adapters on each tool
✅ Only move the hose from tool to tool

That way you’re not doing the “adapter shuffle” every time you change tools.

It makes dust collection feel like part of your normal workflow instead of an annoying extra step.

Bottom line

  • 96524 is a solid base kit for a multi-tool woodworking setup

  • The DeWalt miter saw, Craftsman modified exhaust, and WEN port each may need one extra fitting

  • Once you dial those in, you’ll have a setup that’s:

    • flexible like the expensive hoses

    • easier to use than rigid stock hoses

    • and way more budget-friendly than buying premium hoses for everything

And if you’ve got a tool with a weird port size? Don’t guess — measure the OD and ID, send it over, and we’ll help you map it out.

2nd Mar 2026
