97690 | 2 Inch (50.8mm) X 10 Foot (3.05m) Urethane Ducting Hose with Four Bridge and Two Key Clamps

No reviews yet Write a Review
Ask Questions
2 inch urethane hose, 4 bridge clamps and 2 key clamps.

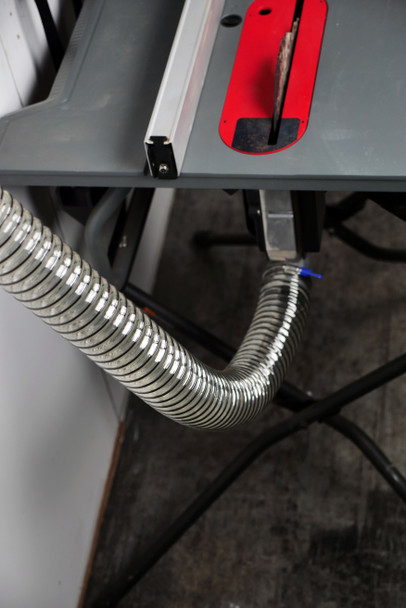

Urethane hose connected to a table saw.
Close-up of urethane hose.
Urethane hose connected to a table saw.
Close-up of 2 inch right hand bridge clamp.
2 inch bridge clamp holding an adapter in the end of a urethane hose.
Utility vacuum and separator connected via urethane hose.
Close up of 2 inch key clamp.
2 inch key clamp holding urethane hose onto a separator.
Urethane hose connected to a separator.
2 inch urethane hose, 4 bridge clamps and 2 key clamps.
Urethane hose connected to a table saw.
Close-up of urethane hose.
Urethane hose connected to a table saw.
Close-up of 2 inch right hand bridge clamp.
2 inch bridge clamp holding an adapter in the end of a urethane hose.
Utility vacuum and separator connected via urethane hose.
Close up of 2 inch key clamp.
2 inch key clamp holding urethane hose onto a separator.
Urethane hose connected to a separator.

97690 | 2 Inch (50.8mm) X 10 Foot (3.05m) Urethane Ducting Hose with Four Bridge and Two Key Clamps

$40.95

Bulk discount rates

  • Buy 10+ get 10% off
  • SKU: 97690
  • Weight: 4.00 LBS
  • Shipping: Calculated at Checkout
    • In Stock!
    Current Stock:Only left:
Description
Overview
Engineered to address the need for a flexible durable ducting hose compatible with home shop vacuums, 2.25" blast gates, and related equipment to convey dust, fumes, wood chips, and similar debris under vacuum.

Features and Benefits
  • 2" X 10 foot clear flexible thermoplastic urethane wire supported hose.
  • Urethane is recognized a superior hose to traditional PVC constructions as it is more abrasion and puncture resistant. Attractive properties in applications where abrasive or splintered material is routinely conveyed such as woodworking, metal working, fiberglass, and similar materials are captured from grinding, machining, sanding, sawing, or shaping.
  • It is not suitable for recovery of cutting oils or volume water conveyance.
Hose specification:
  • 2" X 10' clear with black wire urethane ducting hose
  • 2 plies of clear thermoplastic polyurethane with coated spring wire support. The wire is shielded both inside and out by the polyurethane plies.
  • Maximum working pressure at 70 degrees F: 7 PSI
  • Temperature range: -40 degrees F to 200 degrees F.
  • Bend radius: 2.25"
  • Vacuum:  20.0 HG.
  • Maximum flow:  200 CFM
Additional items included:
  • Four (4) 33-57mm 2.25" stainless bridge clamps.
  • Two (2) 33-57mm 2.25" stainless key clamps.
  • Four (4) 69229 2" to 2.25" ABS adapters designed to fit standard home shop vacuums; 2.25" blast gates, and many woodworking work stations.
Compatibility
Ends are 2" in diameter and included adapters connect to 2.25" connections.


Made in the USA
