Overview:

Quick Click six piece adapter set deigned for use with 1.50" inner diameter crush proof plastic hose. The set includes a 1.50" swivel nose cuff 63217 to be installed on a 1.50" spiral wound crush proof plastic hose. Three 1.50" Quick Click dust collection adapters sized at 1.00"; 1.25"; and 1.50" mounted on an ABS bayonet with air relief to connect to power tool dust shrouds. Inserted into the 63217 these adapters will swivel 360 degrees. A 1.50" to 2.25" ABS adapter. A 2.25" square passive dust shroud designed for use with power tools lacking a specific dust port such as Dremel or band saw.

Features and Benefits:

• The 1.50" swivel nose hose end 63217 will permit the dust collection adapters to rotate 360 degrees reducing stress on the hose, the users wrists and forearm, and aid is free manipulation of the power tool.

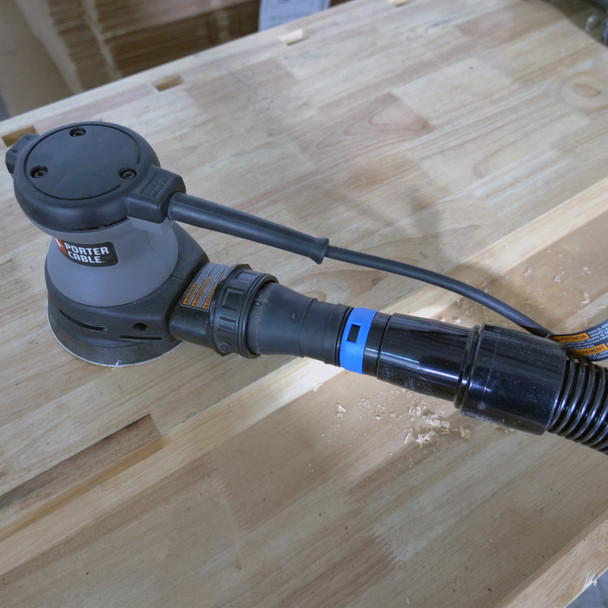

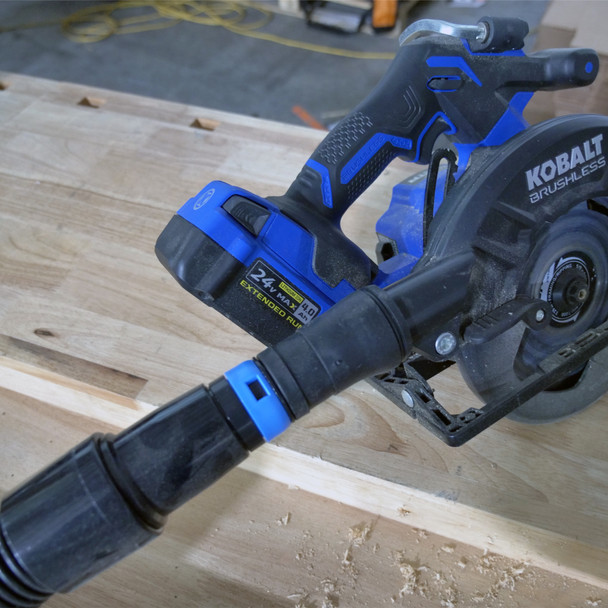

• Three adapters to fit to the dust shroud of power tools like sanders, miter saws, circular saws, and similar tools with male dust collection ports. Inner diameters 1.00"; 1.25"; and 1.50".

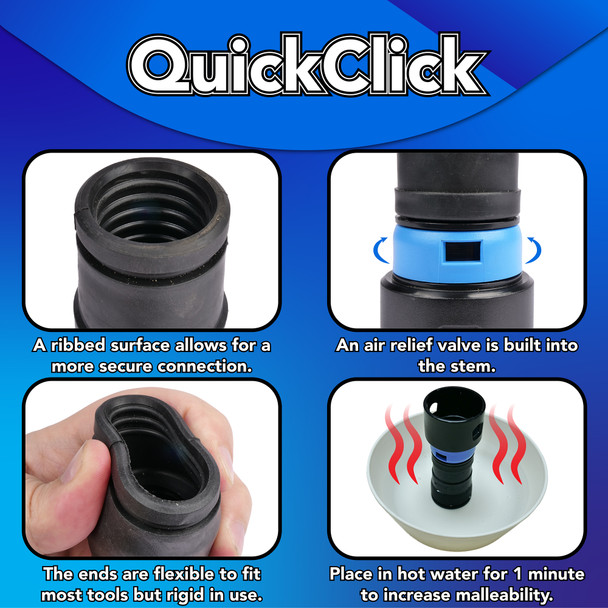

• The adapters are molded in a soft thermoplastic elastomer which permits them to fit male dust shrouds ports up to 20% larger than the identified diameter.
• Crush rings on the interior of the adapters ensure a positive firm hold on the tools during use.
• A 1.50" to 2.25" ABS adapter will fit male into the 1.50" swivel cuff allowing a connection with common home shop vacuums having a 2.25" inner diameter opening.

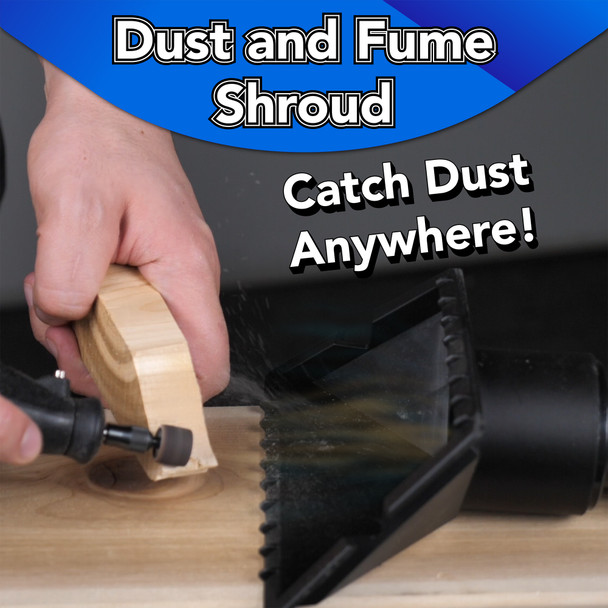

• A passive square dust shroud can be mounted on the 2.25" side of the ABS adapter providing a passive dust collection shroud for tools lacking a dust shrouds such as Dremel's or band saws.

Common Questions:

Why would I want to use a 1.50" Quick Click hose and adapter set?

A 1.50" inner diameter hose has 44% more cross sectional area than a 1.25" inner diameter hose meaning higher airflow delivered to the power tool from your vacuum. It reduces the risk of clogging.

What is the trade off in going to a larger diameter hose?

You are trading significantly higher airflow for a modest change in flexibility. The 1.50" hose has a bend radius approaching 4.00" as compared to a 1.25" hose bend radius of 3.00".

When would a 1.50" Quick Click solution might be most beneficial?

When you are using multiple tools drawing from the same vacuum the larger diameter will optimize the airflow. It can also benefit when the debris being collected is larger in size helping to convey the debris back to the vacuum. It should also be considered when working in commercial environments like concrete coring, tile cutting, grinding, or counter top surface cutting.

Compatibility:

Compatible with Cen-Tec 1.50" hoses 95435, 92751, 90226, and 64477.
