Overview:

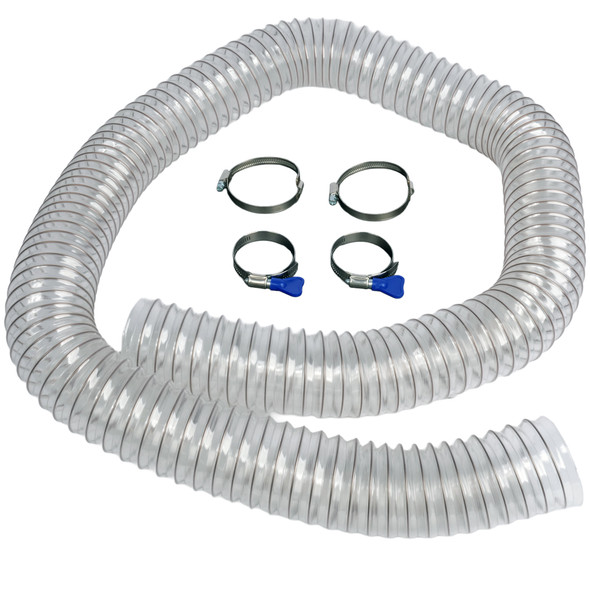

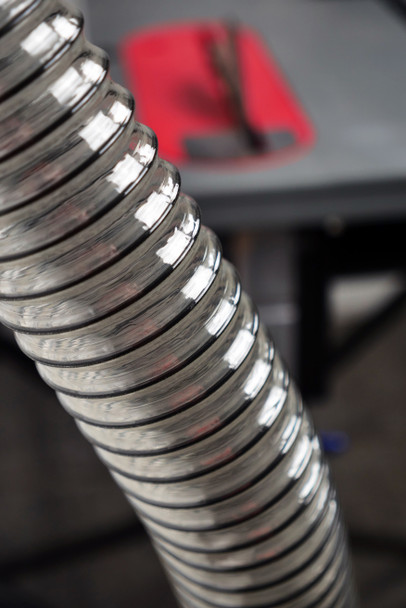

90258 Quick Click 2.50" inner diameter X 12 foot translucent urethane dust collection hose with bronze coated steel spring wire ideal for use for dust collection, woodworking, ventilation and cold air supply applications. Included in the 90258 are four stainless steel bridge clamps and four stainless steel key clamps.

Features and Benefits:

• The .020" translucent urethane wall hose is puncture and abrasion resistant with static dissipative properties.
• The hose is manufactured from FDA approved materials.
• The bronze coated steel spring wire provides in a highly flexible hose bend radius of 3.00" without impacting the inner diameter of the hose.
• 4 set of stainless steel bridge clamps for sealed female connections.

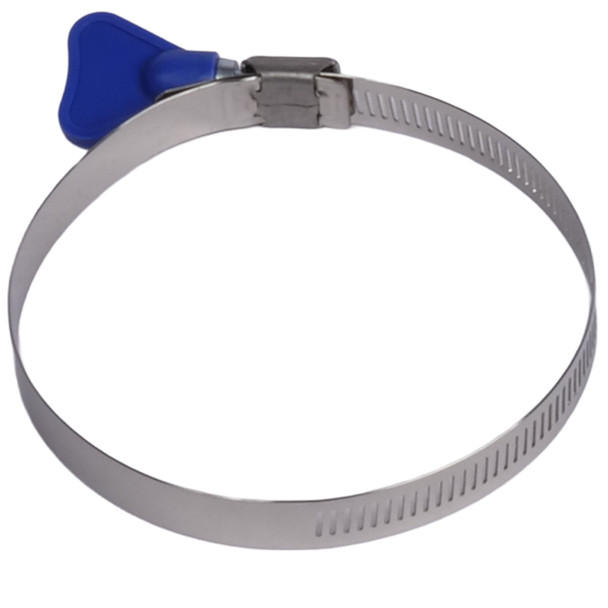

• 4 set of stainless steel key clamps for quick no tool connections.

Hose Specifications:

• .020" translucent urethane wall gauge with dissipative properties.
• Bronze coated steel spring wire.
• Compression ratio 4 to 1.
• Bend radius 3.00".
• Temperature range: -65 degrees F to +200 degrees F.
• Negative working pressure in/Hg 29
• Working pressure 7 PSI
• Weight 4.0 Lbs.
• FDA approved materials.
• Product of USA

Compatibility:

Compatible with 2.5" bridge clamps, 2.5" key clamps, and 41631 adapter to size from 2.50" inner diameter male fit to the common shop vacuum 2.25" male. Compares favorably with FLX-Thane XLD clear.
