Overview:

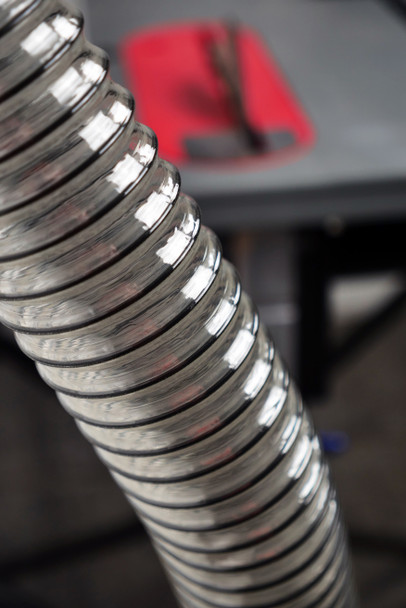

Quick Click urethane dust collection hose 2.50" inner diameter with translucent jacket over a bronze coated spring steel wire helix ideal for use in woodworking dust collection, cold air supply, vapor recovery, and ventilation applications. Available in two length 25 foot # 63316 and 50 foot # 63327.

Features and benefits:

• The .020" urethane jacket offers superior abrasion and chemical resistance making it ideal for dust and debris collection.
• The urethane material offers inherent dissipative properties 10 to the 8th to 10 to the 10th ohms/ square.
• The bronze coated steel wire helix allows for excellent bend radius 3.00" and a compression ratio of 4 to 1.
• An operating temperature range of -65 degrees F to +200 degrees F.

Specifications:

• Urethane jacket material .020" gauge.
• Bronze coated steel spring wire.
• Temperature range -65 degrees F to + 200 degrees F.
• Negative pressure inches / HG 29.
• Working pressure 7 PSI.
• FDA approved materials.
• Weight 25 feet 7.00 LBS. ; 50 feet 14.0 LBS.
• Product of USA.
• Right hand wire spiral.

Compatibility:

Compatible with 97811 bridge clamps ( right hand thread ). Compatible with 97800 key clamps.
