Overview:

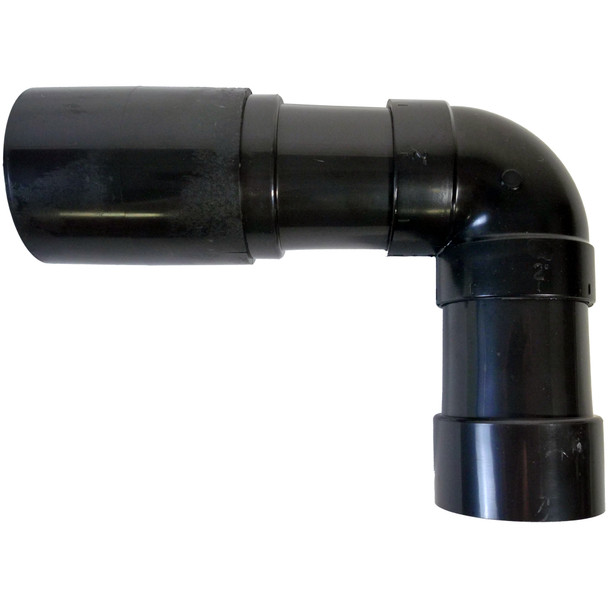

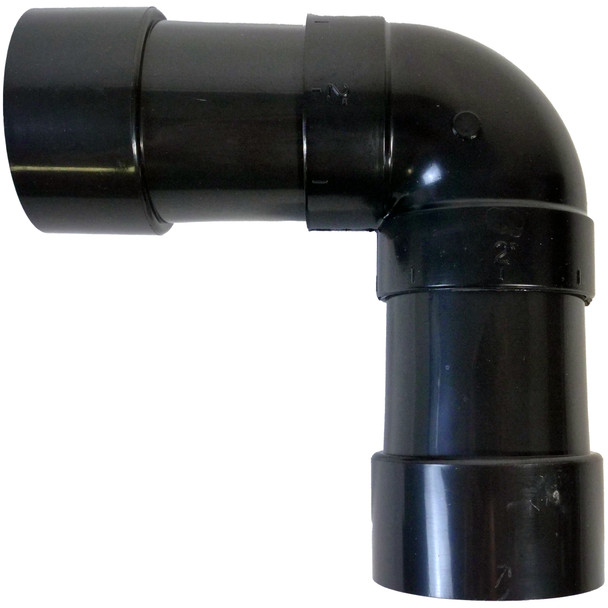

Provides a sharp 90 degree high impact ABS connector from a standard 2.25" inner diameter inlet on home shop vacuums to a male connector with a 2.25" outside diameter or with use of the 61666 connector provided accepts a hose end 1.25"; 1.50"; 1.875. or 2.25" with a 2.25" outside diameter common to hoses sold with home shop vacuums.

Features and benefits:

• Inserted into the vacuums inlet the 90 degree will require 5" of length to realize the 90 degree feature.
• Produced in durable high impact ABS for years of reliable service.
• The 61666 fits male over either end of the 90 degree fitting and permits connection of a hose of any diameter with an end fitting measuring 2.25" on the outer diameter. Note this diameter is the most common dimension found on all major brands of home shop vacuums.
• A 90 degree connection is often requested when the vacuum is mounted on the wall or used in conjunction with a dust separator to reduce storage space or mount the separator above or below the vacuum.
• A common request for use with wall mounted home shop vacuums like the Shop Vac Hang-Up or Rigid Stor-N-Go to direct the hose to the floor avoiding the length of the arc when connected directly to the vacuum.
• Wet-Dry compatible.

Common Question:

Does this adaptor require a permanent connection?

No. It is a simple press fit into the vacuum and accepts the most common hose diameters of 1.25"; 1.50"; 1.875"; and 2.25" with a tapered male end having an outside diameter of 2.25" using the 61666 splicer provided.

Does this fitting restrict airflow?

The fitting is a full 2" in diameter with a smooth surface optimize air flow and prevent clogs.

Compatibility:

Compatible with a wide range of Cen-Tec hoses and kits including the 30' 90234, 99175 30' hose and accessories, and the Quick Click # 99329 dust collection and general shop clean-up accessories.
